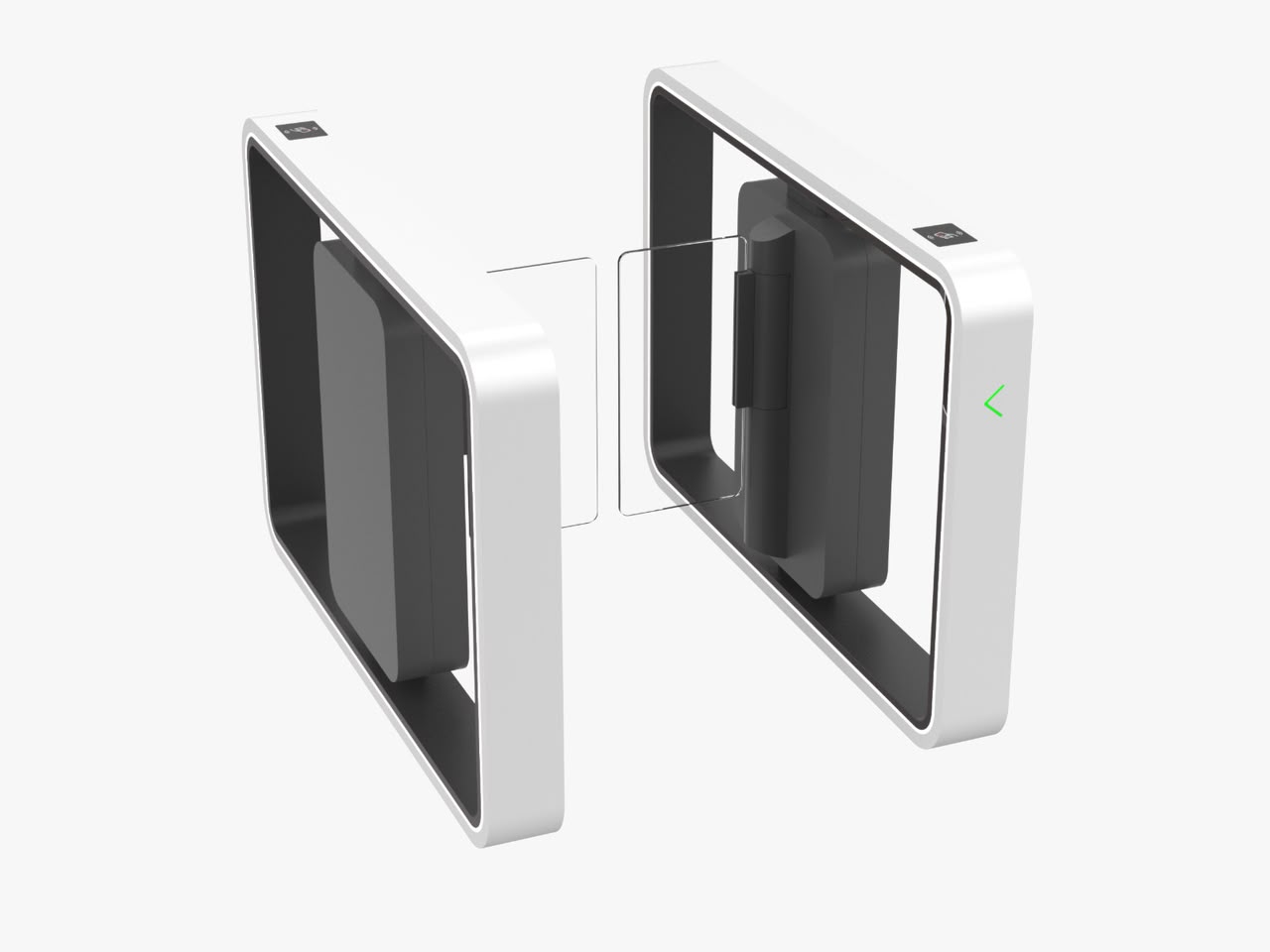

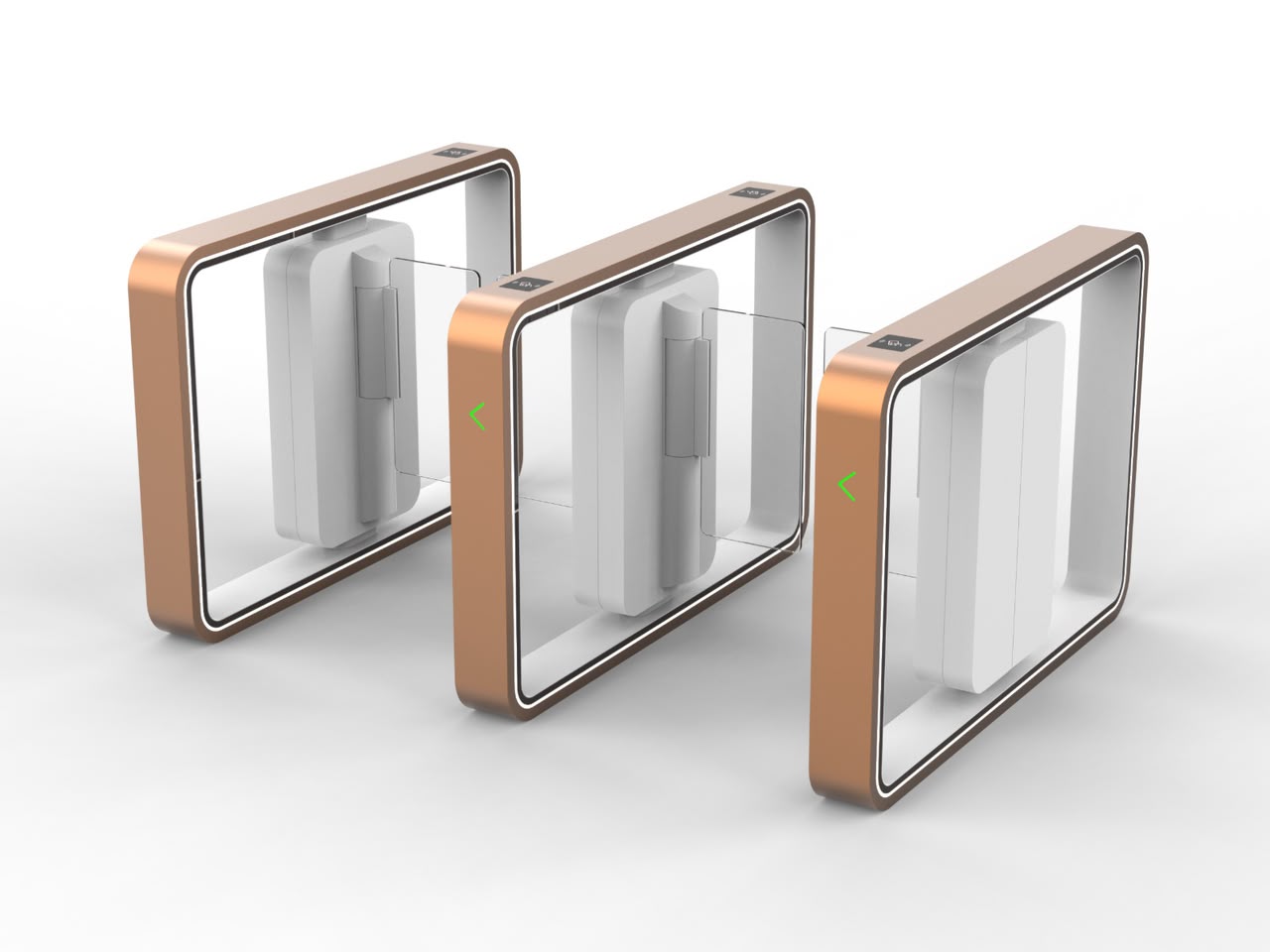

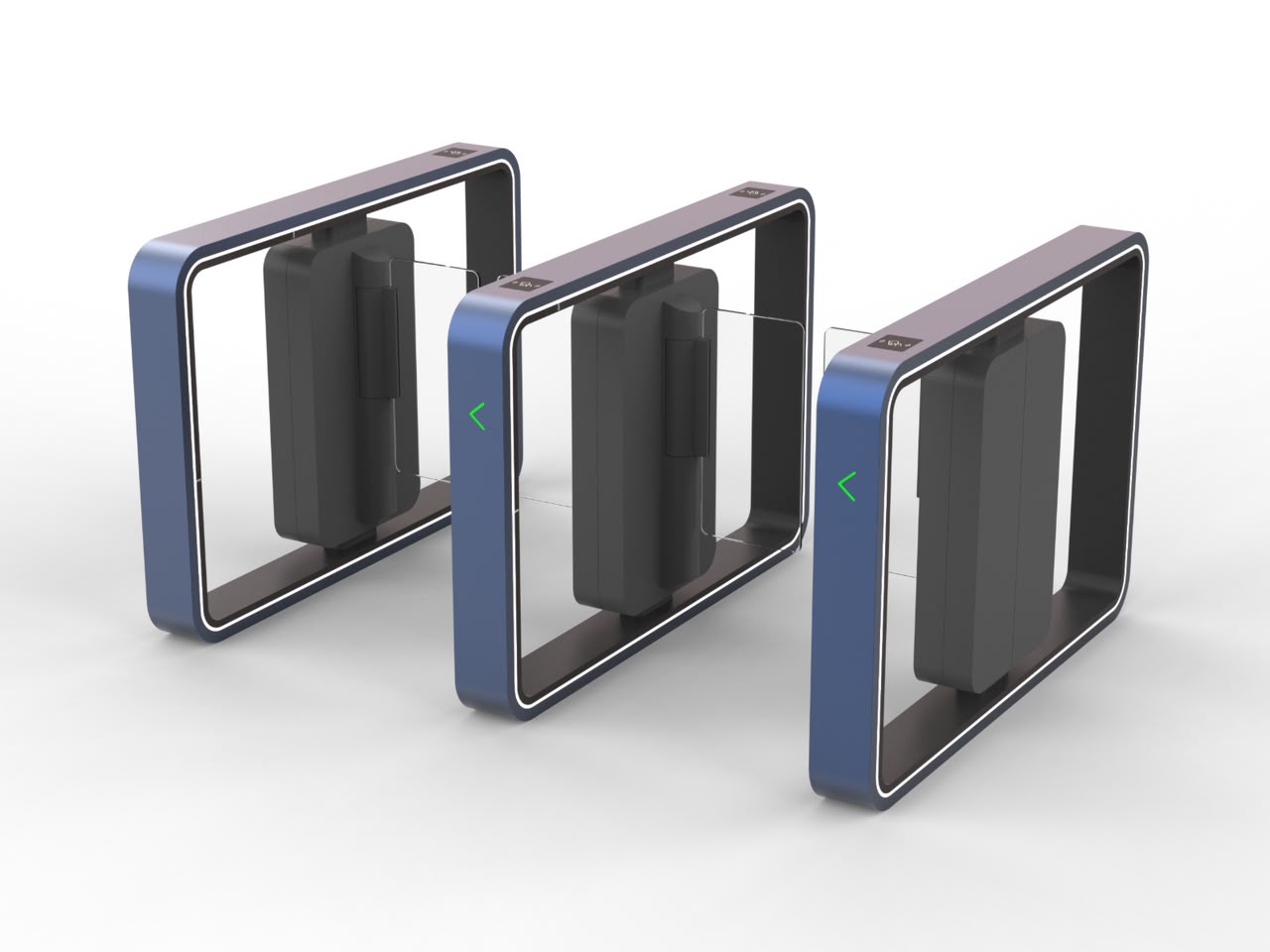

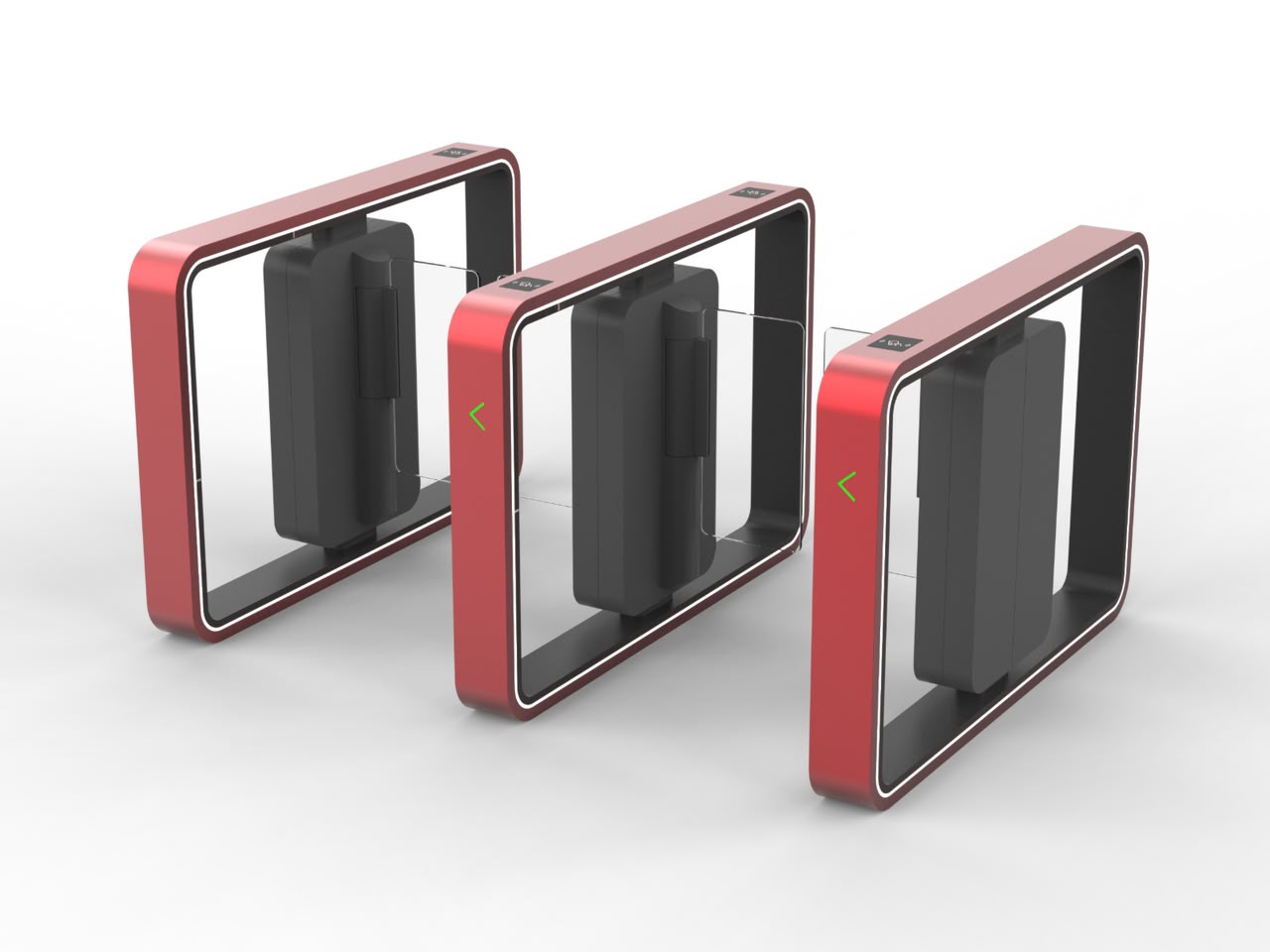

SG95 Speed Gate
The SG95 speed gate combines a slim SUS304 stainless-steel cabinet with PMMA acrylic arms, 14 pairs of concealed IR sensors and fast servo-controlled operation. With an adjustable 600-900mm passage width and a throughput of 35-50 people per minute, it provides secure and accessible entry for busy indoor environments.

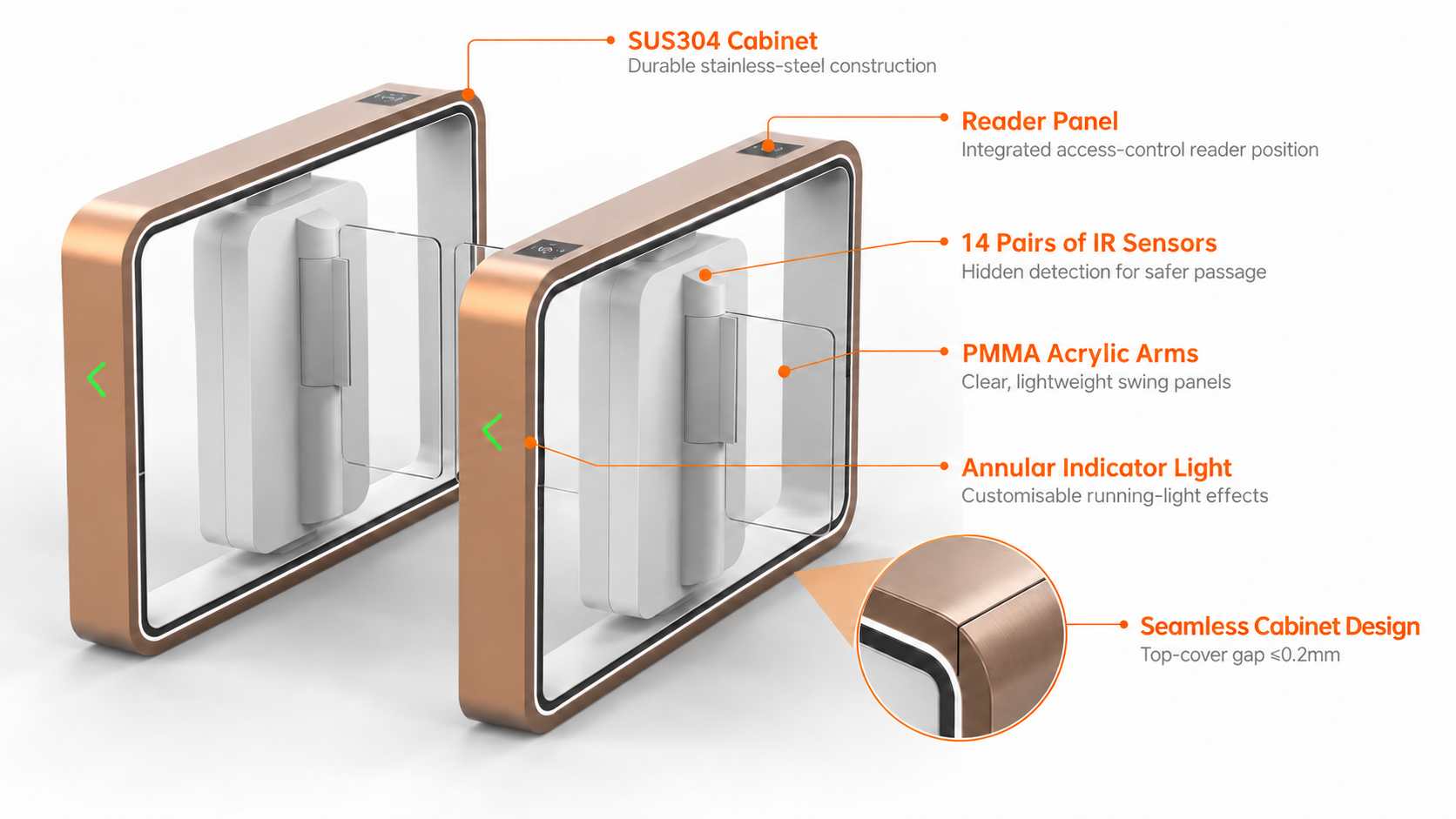

Elegant Design
The SG95 features a clean, screwless cabinet with no visible keyholes and gaps of no more than 0.2mm between the top cover and body. Hidden IR sensors and annular ambient lighting maintain its streamlined appearance while providing clear passage guidance.

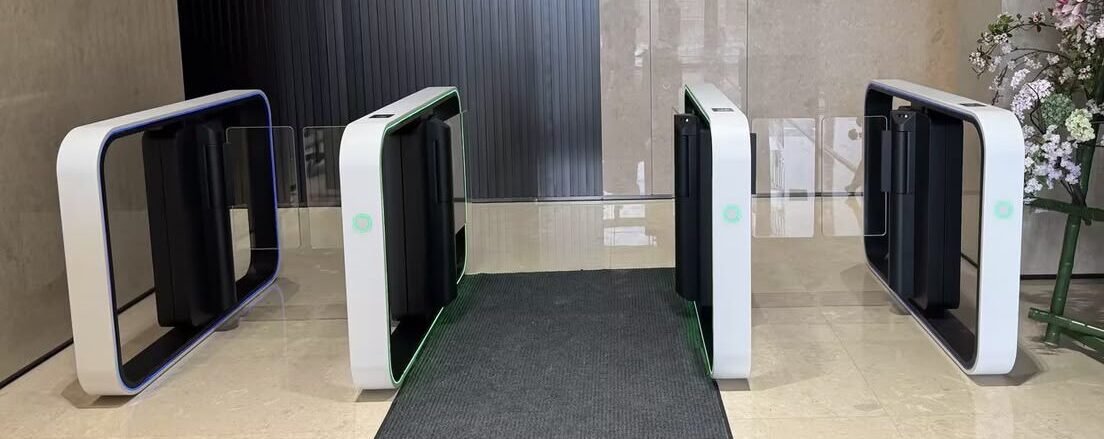

See the SG95 in action
Watch the SG95 deliver fast, smooth and controlled access in a busy entrance environment.

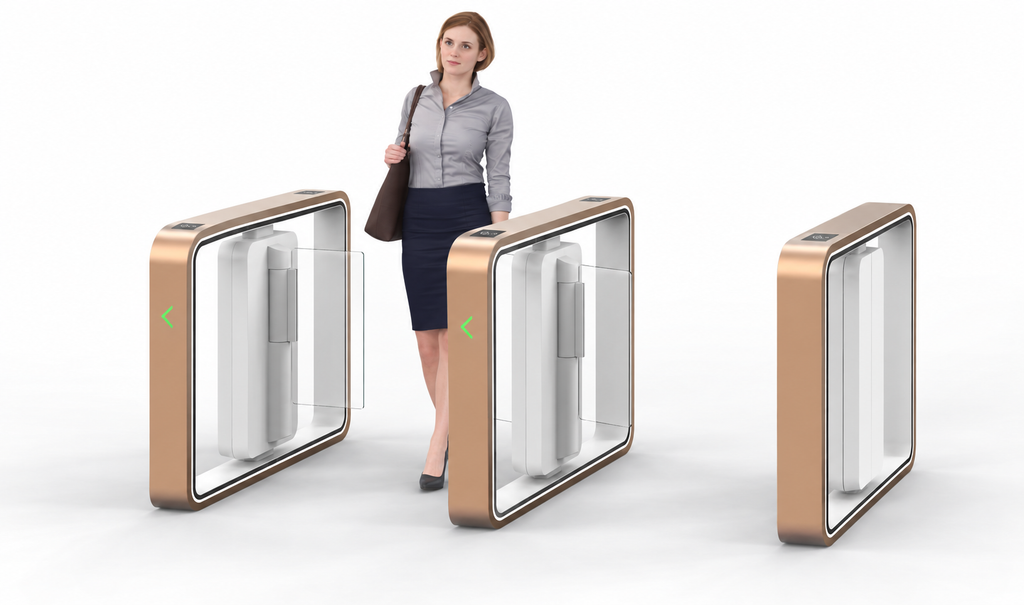

Adjustable Passage Width and Customisable Lighting
Passage Width: The passage width can be configured from 600mm to 900mm, allowing the SG95 to support standard pedestrian access as well as wider accessible routes.
Lighting Guidance: Red and green indicators provide clear passage guidance, while the annular ambient lighting can be configured with custom running-light effects.
Precise Servo-Controlled Operation
A 24V servo motor works with a clutch and encoder to provide accurate positioning and smooth, controlled movement. The gate can open in as little as 0.3 seconds, with an adjustable opening speed and an operating noise level below 50dB.
The opening angle is controlled to 90°±5°, helping the SG95 provide consistent performance in busy access-control environments. .
0.3s
Fastest opening speed
14
Hidden IR sensors
≤50DB
Noise
≥20
Million times certified MCBF
SG95 Technical Details
| SPEED GATE SG95 | ||
| General | Product Name | Speed Gate |
| Model | DR.TD.6695 | |
| Physical Para. | Cabinet Material | SUS304 Stainless Steel |
| Arm Material | PMMA Acrylics/Plexiglass | |
| Size | 1400*140*1025mm | |
| IR Sensor | 14 pairs | |
| Electric Para. | Voltage | AC220±10%V, 50±10%Hz |
| Driving Motor | DC24V Servo Motor | |
| Power | 100W (left/right), 200W (middle) | |
| Communication Interface | Level/Pulse/RS485/RS232 | |
| Input Interface | Relay (dry contact) | |
| Passing Info. | Passing LED Indicator | Red/Green indicator + annular ambient light (customisable running light effect) |
| Direction of Passing | Uni-directional/Bi-directional | |
| Passing Width | 600~900mm | |
| Passing Speed | 35-50 people/min | |
| Performance | Method of Positioning | Servo motor + clutch + encoder |
| Opening Speed | Fastest 0.3s, adjustable | |
| Angle of Gate Opening | 90°±5° | |
| MCBF | 20 million times | |
| Noise | <50dB | |
| Extras | Working Environment | Indoor, -25℃~70℃ |
| Relative Humidity | ≤90%, no condensation | |
| IP Level | IP42 | |
Multiple Function Protection

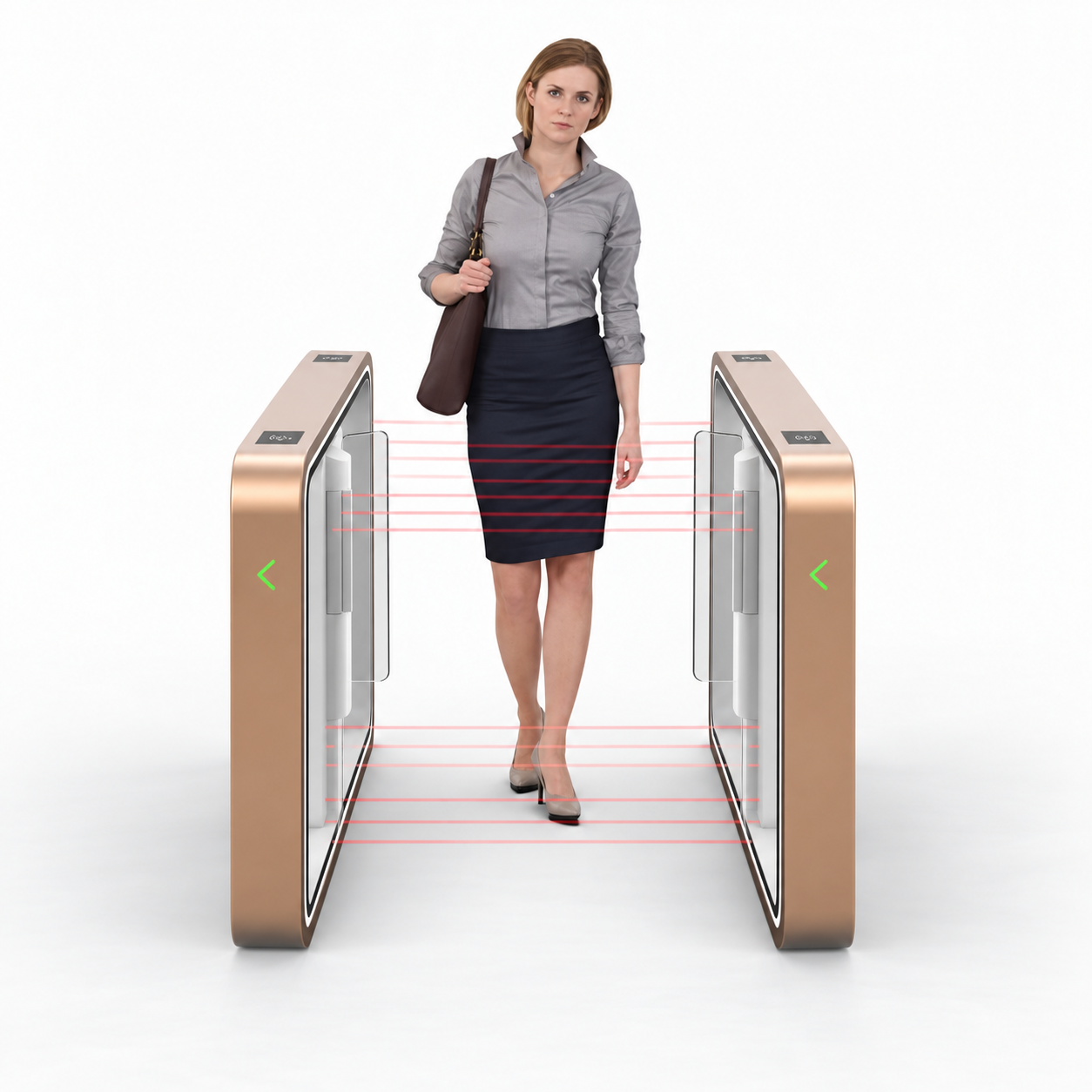

Fourteen pairs of IR sensors work alongside traffic logic and current detection to provide three layers of anti-pinch protection. The SG95 also supports anti-tailgating, anti-reverse, illegal-entry alarms and automatic reopening when a person is detected as the gate closes.
Anti-Tailgating Protection
Configurable anti-tailgating modes can trigger an alarm while the wings are opening or closing, helping staff identify unauthorised following attempts.

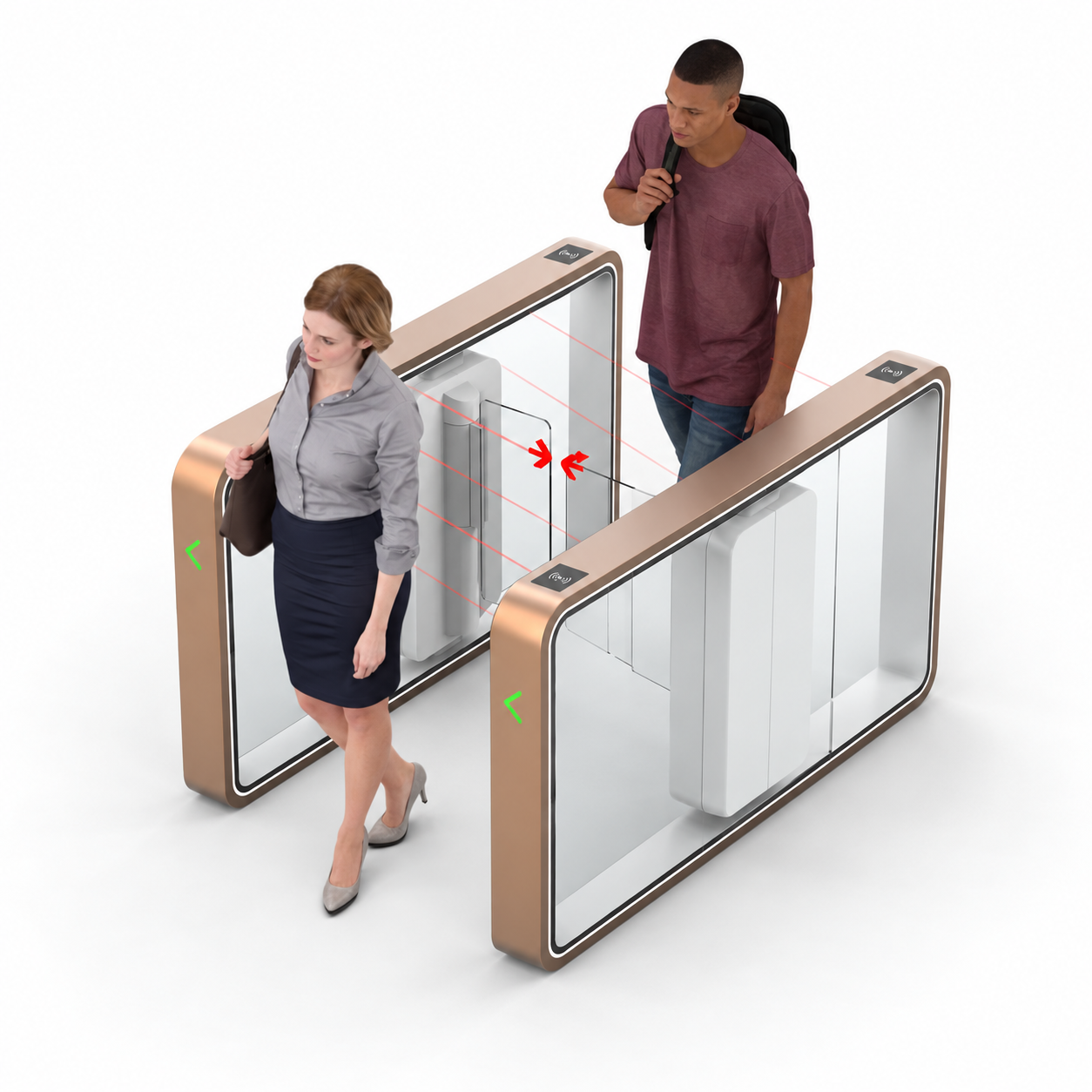

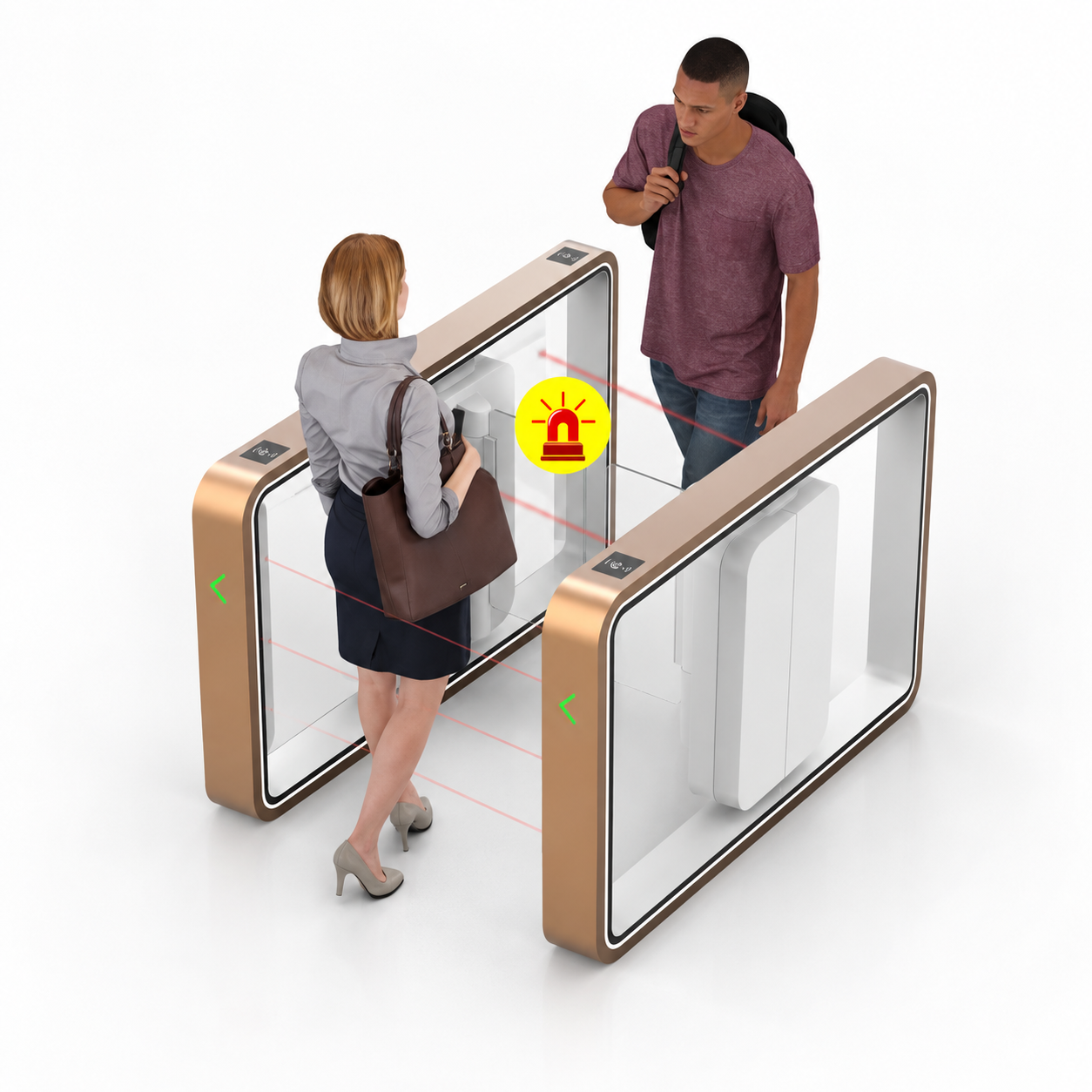

Anti-Intrusion & Reverse Protection
The wings automatically close when an opening signal has not been received. Configurable anti-reverse modes can sound an alarm and either clear or retain the authorised user’s right to pass.
Anti-Pinch & Collision Protection
IR sensing, traffic logic and current detection provide multiple layers of anti-pinch protection. If the wings encounter an obstruction, they stop and rebound to help reduce the risk of impact.
Multiple Passing Method Support
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR Code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
